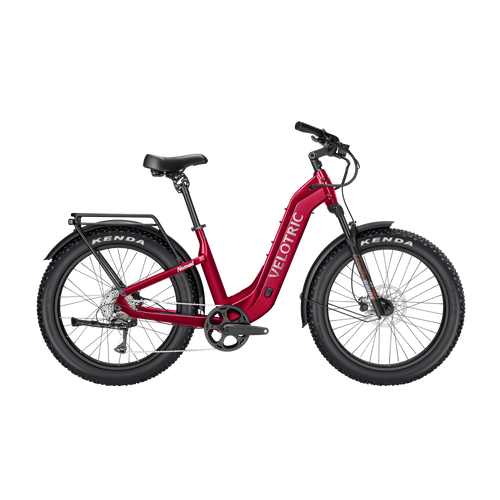

Velotric Nomad 2 Fat Tire Ebike [Velotric]

Overview

The Velotric Nomad 2 is a powerful fat-tire all-terrain e-bike built to go beyond paved roads. A 750W rear-hub motor with 90Nm of torque, a 705.6Wh battery, 26×4.0" Kenda puncture-resistant tires and a 100mm hydraulic suspension fork work together to deliver confident control on gravel, dirt, snow, sand and city streets. With a max bike load of 505 lb and a tow rating up to 1000 lb, it’s designed for riders who pack more, go further and expect their bike to keep up.

Key Performance Features

• 48V, 750W rear hub motor with 90Nm of torque for strong hill-climbing and loaded riding.
• 48V, 14.7Ah (705.6Wh) removable battery with Samsung/LG 21700 cells for dependable range.
• Up to 65 miles of pedal-assist range and up to 45 miles using throttle, depending on conditions.
• Class 1/2/3 configurable: default top speed 20 mph, adjustable between 12–28 mph.
• SensorSwap™ system with both torque and cadence sensors so you can choose a natural or effortless assist feel.
• Walk mode at 2.9 mph for moving the bike on foot or up ramps.

Frameset

• Triple-butted aluminum alloy frame available in Step-Thru and High-Step designs.
• Front RST hydraulic suspension fork with 100mm travel and lock-out for smoothing rough terrain.
• Robust construction rated for heavy riders, cargo and towing.

Electronics & Controls

• 48V, 750W motor hub with 90Nm torque.
• Removable 48V, 14.7Ah (705.6Wh) battery, IPX7 rated and UL 2271 certified.
• Samsung/LG 21700 battery cells, UL 2580 certified.
• 48V, 3.0A fast charger included.
• 3.5" full-color, high-brightness display with Bluetooth and adjustable angle.
• Torque and cadence sensor support (SensorSwap™) for selectable pedal-assist feel.
• USB Type-C port for phone charging on the go.
• Removable trigger-control throttle for on-demand power.
• 3 riding modes × 5 PAS levels for fine-grained control over assistance.
• Light-sensing 130 Lux / 500 lm high-output integrated LED headlight with adjustable angle.
• Integrated rear light with brake indicator, turn signals and steady/flash modes, built into the rear rack.
• App connectivity with OTA updates and Apple Find My™ support.

Speed & Range

Range values based on a 187 lb rider using PAS 1 in Eco mode on flat roads.

• Default max speed: 20 mph.
• Adjustable speed range: 12–28 mph (Class 1/2/3 configurable).
• Throttle-only range: up to 45 miles.
• Pedal-assist range: up to 65 miles.

Drivetrain

• 48T chainring for strong, steady pedaling at speed.
• Aluminum alloy crankset, 165mm length.
• 8-speed freewheel, 11–40T for wide-range gearing.
• 8-speed chain matched to the drivetrain.
• Shimano 8-speed rear derailleur for smooth shifting.
• Shimano 8-speed shift lever for reliable control at the bar.

Brakes

• Tektro hydraulic disc brakes front and rear.
• 203mm front rotor and 180mm rear rotor for strong stopping power under load.
• Aluminum alloy brake levers with power cutoff for safety.

Wheels & Tires

• Aluminum alloy rims built for strength and durability.
• Aluminum alloy front hub with nutted axle.
• KENDA 26×4.0" e-bike specific puncture-resistant fat tires for traction and comfort on varied surfaces.

Cockpit & Comfort

• Aluminum alloy handlebar, 31.8mm clamp diameter, 680mm (Regular) / 700mm (Large) width.
• Durable, ergonomic, lock-on grips.
• Adjustable aluminum alloy stem, 31.8mm clamp, 60mm (Regular) / 90mm (Large) length.
• Velotric comfort ergonomic saddle for long-ride comfort.
• Aluminum alloy 30.9mm suspension seatpost with quick-release clamp.

Supports & Practical Features

• Front and rear full-coverage fenders for all-weather riding.
• MIK HD compatible rear rack for child seats, baskets and cargo systems.
• Durable platform pedals.
• Aluminum alloy rear-mount kickstand included.

Weight, Load & Towing

• Bike weight: 75 lb.
• Max bike load (rider + cargo): 505 lb.
• Rear rack load capacity: 66 lb.
• Tow rating: up to 1000 lb, suitable for compatible trailers and heavy gear.

Certification

• UL 2849 certified e-bike system.
• ISO 4210 compliant frame and component safety standard.

Sizing & Geometry

Nomad 2 is available in Step-Thru and High-Step frames, each in Regular and Large sizes to fit a wide range of riders.

Step-Thru Geometry

• Regular – Rider Height: 5'2" – 5'11"
• Large – Rider Height: 5'10" – 6'5"
• Reach: 413mm (Regular / Large)
• Handlebar Height: 1060mm (Regular / Large)
• Wheelbase: 1230mm (Regular), 1235mm (Large)
• Stand-Over Height: 410mm (Regular / Large)
• Minimum Saddle Height: 850mm (Regular), 900mm (Large)
• Maximum Saddle Height: 1070mm (Regular), 1130mm (Large)

High-Step Geometry

• Regular – Rider Height: 5'2" – 5'11"
• Large – Rider Height: 5'10" – 6'5"
• Reach: 413mm (Regular / Large)
• Handlebar Height: 1060mm (Regular / Large)
• Wheelbase: 1230mm (Regular), 1235mm (Large)
• Stand-Over Height: 720mm (Regular), 745mm (Large)
• Minimum Saddle Height: 850mm (Regular), 900mm (Large)
• Maximum Saddle Height: 1070mm (Regular), 1130mm (Large)

Who It’s For

The Velotric Nomad 2 is ideal for riders who want a fat-tire e-bike that can handle real-world conditions: loose gravel, snowy paths, forest roads, rough pavement and heavy cargo. It’s a great choice for adventure riders, all-weather commuters, larger riders and anyone who needs serious load capacity, strong torque and stable handling on challenging terrain.
